What type of Resin shall I Use?
A Polyester resin is a synthetic polymer that is commonly used as a thermosetting resin in a wide variety of applications such as marine, automotive, leisure and architectural. Polyesters are made by reacting a dicarboxylic acid with a diol, which forms an ester linkage and produces a linear chain polymer.
Polyester resin is known for its very good mechanical properties, such as high strength, stiffness, and impact resistance, also resistant to water, chemicals, and UV radiation, which makes it a popular choice for outdoor applications.
One of the most common uses of polyester resin is in the manufacturing of fiberglass reinforced plastics (FRP), which are used in a wide variety of applications such as boats, automobiles, and construction materials. Polyester resins are also used as a casting material for sculptures, decorative objects, and jewellery items.
Polyester resins can be either cured at room temperature or at elevated temperatures, depending on the application and can be used in combination with various additives, such as fillers, pigments, and alternative catalysts, ie slow / fast reactive, to enhance its properties and performance.

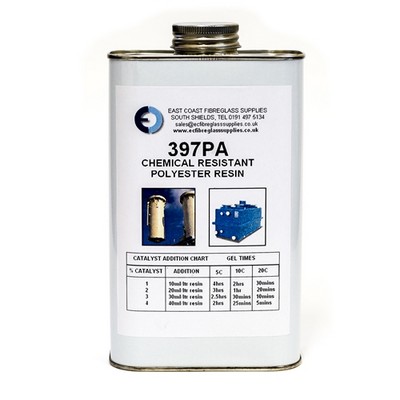

Isophthalic Polyester Resin
An Isophthalic polyester resin is another type of polyester resin that is produced by reacting isophthalic acid with diols. ‘ISO’ Polyester resin has much improved mechanical properties and also chemical resistance compared to standard polyester resins due to the presence of isophthalic acid in the polymer backbone.
Isophthalic polyester resins are commonly used in the manufacture of FRP products that require high chemical resistance, such as pipes, tanks, and chemical storage vessels, boats. It is also used in the construction of swimming pools and marine applications, where it provides exceptional resistance to water and UV radiation.
An Isophthalic polyester resin has numerous advantages over a standard polyester resin. It has higher tensile strength, much improved chemical resistance, and better thermal stability, making it more suitable for use in harsh environments, it has low shrinkage and can be easily cured at room temperature or with heat.
Isophthalic polyester resin can be used in combination with various additives, such as fillers, pigments, to enhance its properties. It is important to follow proper handling and safety procedures when working with isophthalic polyester resin, as it can be very hazardous if not used correctly.

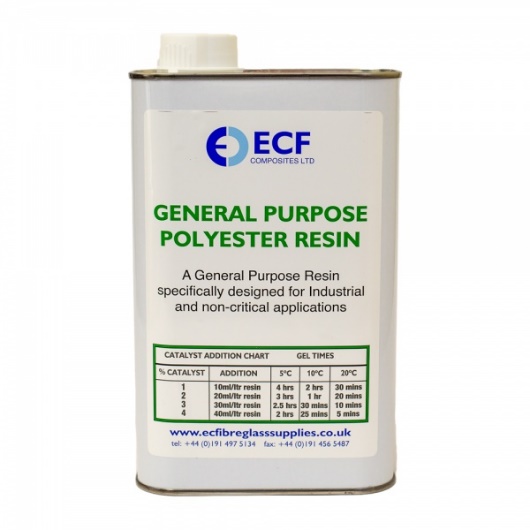

An Orthophthalic polyester resin is a common type of polyester resin that is produced by reacting orthophthalic acid with diols. This Polyester resin is commonly used in the manufacture of fibreglass products that require moderate mechanical properties and chemical resistance, such as marine components, automotive parts, and electrical enclosures, other non critical applications such as fibreglass roofs.
An Orthophthalic polyester resin is less expensive than isophthalic polyester resin, but, in turn has a lower mechanical strength and chemical resistance. It can be reinforced with various fillers and reinforcements such as fiberglass.
Orthophthalic polyester resins can be cured at room temperature or indeed with heat, It is also easy to handle and can be used in a variety of manufacturing processes such as hand a spray lay up methods.
It is also important to consider that orthophthalic polyester resins are not really suitable for applications that require a higher chemical resistance or exposure to harsher environments, as it can degrade over time, isophthalic or vinyl ester resins may be more appropriate.
Isophthalic Polyester Resin Vs Orthophthalic Polyester Resin
An Orthophthalic polyester resin and isophthalic polyester resin are two different types of resins that are used in the manufacturing of composite / GRP materials. Whilst both resins share similarities, they also have some important differences.
One of the main differences between orthophthalic and isophthalic polyester resins is it’s chemical structure. Orthophthalic polyester resin is produced by reacting orthophthalic acid with diols, while isophthalic polyester resin is produced by reacting isophthalic acid with diols. An Isophthalic polyester resin contains more aromatic rings in its molecular structure, which gives it greater mechanical properties and chemical resistance compared to that of an orthophthalic polyester resin.
An Isophthalic polyester resin has a higher degree of crosslinking and increased chemical resistance than a standard orthophthalic polyester resin which makes isophthalic polyester resin more suitable for applications that require high chemical resistance, such as chemical storage tanks, pipes, and other very corrosive and critical environments. Isophthalic polyester resin is also more resistant to UV rays and has greater weathering properties.
An orthophthalic polyester resin is a degree less expensive than isophthalic polyester resin, making it a more cost-effective option for applications that do not require high chemical resistance or exposure to harsh environments. Orthophthalic polyester resin is commonly used in the manufacturing of marine components, automotive parts and architectural panels and other composite mouldings.
To summarise this topic, isophthalic polyester resin is better suited for applications that require higher chemical resistance and increased mechanical properties, while an orthophthalic polyester resin is a more cost-effective option for lesser applications that do not require high chemical resistance or exposure to harsher environments. Please consider these values before proceeding.

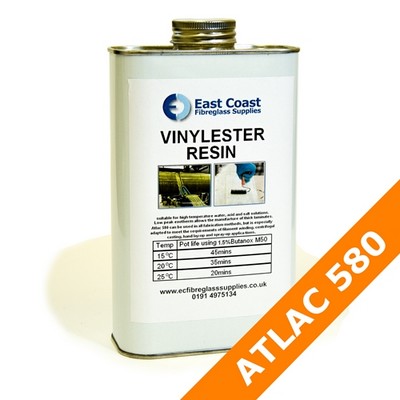

Vinylester Resin
A Vinylester resin is known for its higher strength, with increased corrosion resistance, with resistance to fatigue and also impact. Vinylester resins are more commonly used in the manufacturing of GRP products, including boats, wind turbine blades, and also chemical storage tanks, where its superior chemical resistance is really useful.
Vinylester resins can also be used in conjunction with numerous reinforcing materials, such as fibreglass, carbon fibre, and aramid / Kevlar fibres, to produce composite components with increased strength and durability. Vinlyester resins can be cured at room temperature or with heat, and its curing time can be adjusted by using different catalysts, such as fast – slow or medium reactivity.
In addition to its mechanical properties, vinylester resin is also resistant to UV rays, which makes it a good choice for outdoor applications. It can also be used in a range of colours and finishes, making it suitable for a variety of aesthetic applications.
Overall, a vinylester resin is a versatile and high-performance material that is well-suited for a variety of applications where strength, durability, and chemical resistance are important factors.

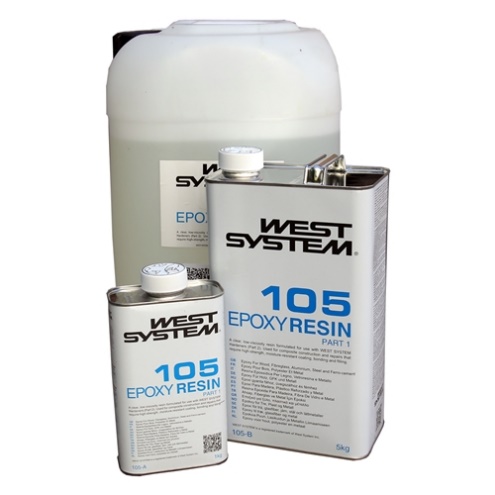

Epoxy Resin
Epoxy resins are a type of thermosetting resin that is derived from the reaction of epoxide monomers with curing agents, such as amines, anhydrides, and phenols. The resulting material is a cross-linked polymer that has exceptional mechanical properties and is highly resistant to chemicals and bonds well to most structures.
An Epoxy resin is known for its high strength, stiffness, and toughness, it also has excellent adhesion properties. It is commonly used in a wide range of applications, including the manufacturing of composite components, adhesives, coatings, and some electronic components.
In the manufacture of composite materials, epoxy resins are often used as a matrix material in combination with reinforcement , such as fibreglass, carbon fibre, and Kevlar fibres. The resulting composite materials are lightweight, high-strength, and increased resistant to fatigue and impact.
An Epoxy resin is also used as an adhesive, the bonding of metals, plastics, and wood. Epoxy resin will bond to a wide range of substrates, as well as its excellent mechanical properties and chemical resistance, make it a popular choice in the marine, aerospace, automotive, and leisure industries.
Epoxies can also be formulated with various additives, such as fillers, pigments, and modifiers, to enhance its properties, colour and performance.
For more information and a full range of Fibreglass Supplies please visit: www.ecfibreglasssupplies.co.uk
Author: G.Bates
This advice and information is given in good faith for guidance only. and is given without warranty, users should determine information given and using their own judgment to determine suitability.
